Model NO. | XH65/70/85/90/95 |
Processing Technics | Extrusion |
Bulking Machine Type | Feed Hammer Mill |
Bulking Machine Type | Twin Screw Bulking Machine |
Condition | New |
Warranty | 1 Year |
Materials | 201/304 |
Installation service | Custmer Factory on-Site Service |
Final Product | fish feed |
Motor | Siemens/Chinese Famous Brand |
Advantage | Easy to Control |
Application | Dog, Cat, Fish, Bird |
Transport Package | Woodcase and Film |
Heating Temperature | Adjustable |
Processing Object | Cereals |
Screen Mesh | With Screen Mesh |
Pellet Mill Type | Screw Granulator |
Expanding Method | Dry Expansion |
Applicable Materials Shape | Granular |
Key Words | Dog Food Production Line |
Screw Material | 38CrMoAl/12crmov/6542 |
production capacity | 100/200/300/500/800/1000/5000kg/Hour |
Voltage | 380V/220V/440V |
Motor Power | 22kw/30kw/55kw/75kw |
Inverter | Delta/Siemens |
Pet food packaging specifications | 5kg/10kf/25kg Per Bag |
Oven Heating Way | Electric/Gas/Steam |
Specification | customize |
Origin | China |
Screw | Combination/non combination |

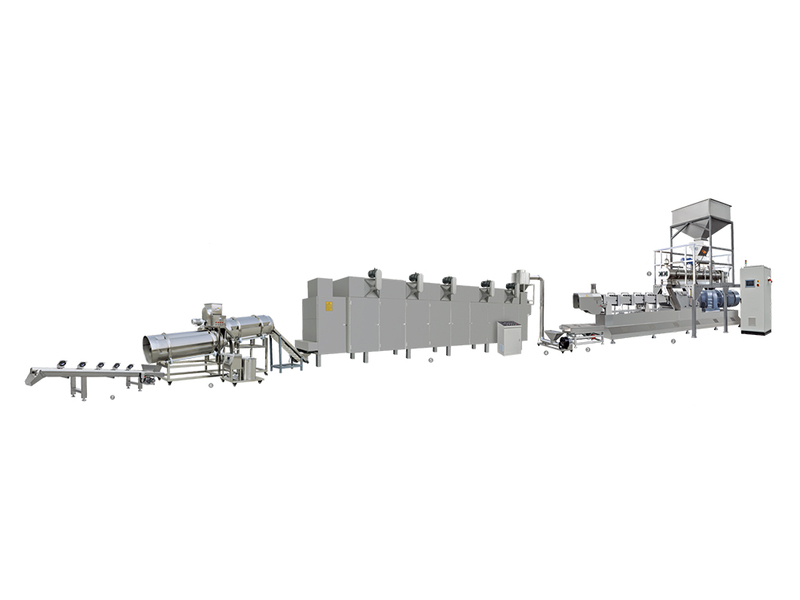

Large-scale production line can produce a premium quality specilal koi food goldfish food. tropical fishes food. dog food. catfood. as well as dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented fromcustomers. This production line adopts steam method with high efficency driving. stable and low noise.t is with Internationaladvance steam fittings and imported pressure reduction valve.
Process flow
Raw material receiving → cleaning → crushing → batching and mixing → conditioning → extrusion / pelleting → drying → cooling → oil spraying → grading → packaging
Available product types
1.Floating feed: high expansion degree, low density, floats on the water surface (grass carp, tilapia, etc.)
2.Sinking feed: low expansion degree, high density, rapid sinking (carp, crucian carp, etc.)
3.Slow-sinking feed: medium density, slow sinking (shrimp, crab, marine fish)
Feature
1.High degree of maturity: starch gelatinization degree ≥90%, easy to digest, less waste.
2.Strong water resistance: Stable in granular water for ≥30 minutes, reducing pollution.
3.Automation: PLC control, recipe management, parameter monitoring, automatic packaging.
4.Capacity: Small: 100–500kg/h; Medium: 1–5 tons/h; Large: 10–30 tons/h.
Scope of Application
1.Freshwater fish: grass carp, common carp, crucian carp, tilapia, bream.
2.Marine fish: sea bass, grouper, and large yellow croaker.
3.Shrimp and crab: Litopenaeus vannamei, crayfish, river crab.
